DWTB-C labeling machine
DWTB-C is economical, self contained, easy to operate, equipped with auto teach programming touch screen. Built in microchip storing different job setting makes fast and easy changeover. This automatic labeling system is ideal for slim cylindrical container with diameter from10mm-25mm such as ampoule
DWTB-C is economical, self contained, easy to operate, equipped with auto teach programming touch screen. Built in microchip storing different job setting makes fast and easy changeover. This automatic labeling system is ideal for slim cylindrical container with diameter from10mm-25mm such as ampoule.
- Key Features:
Labeling speed up to 250 CPM
Touch Screen Control System with Job Memory
Simple Straight Forward Operator controls
Full-set protecting device keep operation steady and reliable
On-Screen trouble shooting & Help Menu
Stainless Frame
Open Frame design, easy to adjust and change the label
Variable Speed with stepless motor
Label Count Down (for precise run of set number of labels) to Auto Shut Off
Stamping Coding Device attached
- Specifications:
Labeling Speed: 100-250 bottles/minutes (according to the specification, shape of bottle and length of label)
Bottles size: ø10-25 mm, height (can be customized based on the requirements)
Dimensions: 1600mm x 600mm x 1250mm (Length x Width x Height)
Weight: 185KG
Electrical Requirements:
— Power: 260W, Voltage: 220V, Frequency: 50-60HZ (Optional)
Working direction: Left-Right
- Industry Type(s)
Cosmetic/personal care
Household chemical
Food & beverage
Nutraceuticals
Pharmaceuticals
Related Products
-
LGSZ Series Filling Stoppering Capping Machine
Introduction: This machine is applied for 30-300 ml glass and plastic bottles. It has filling and stoppering and capping function integrated. Adopted linear type filling; mechanic way to stoppering; cap putting and clamp or screw capping.This machine is easy to operate and maintain. It can be connected to other machine for combined whole production line. Technical Parameter: Applied for 30-400ml…
-
BS 560C Automatic Shrink Packaging Machine
The machine is used to shrink pack single or multiple medicine, food stuff, cosmetic, chemical, auto parts and so on. Its max speed is 30 packs / min. It can finish all actions automatically like covering with film, sealing, shrinking and so on. The bag length is controlled by photoelectric stepping motor; shrinking speed is controlled stepless; HMI and PLC control the whole machine. The malfunction can be shown automatically when the machine is running. It can be used separately or in line with automatic boxing machine.
-

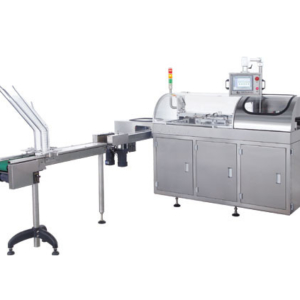

TB 350 Automatic Cellophone Over-Wrapping Machine
