Vials Filling Production Line
Vial injection filling production line project (GMP) is a kind of screw type sterile vial powder filling machine our company has newly developed. It adopts two track, cylinder positioning,2 head screw filling and 2 roller stoppering. The servo motor controls the filling auger precisely. Corporation standardization number no:q/tgb04-2006.
- Application:
Vial injection filling production line project (GMP) is a kind of screw type sterile vial powder filling machine our company has newly developed. It adopts two track, cylinder positioning,2 head screw filling and 2 roller stoppering. The servo motor controls the filling auger precisely. Corporation standardization number no:q/tgb04-2006.
- Production capacity:
7Ml vial filling dosage 1g 160~200 bts/min
- Working principle:

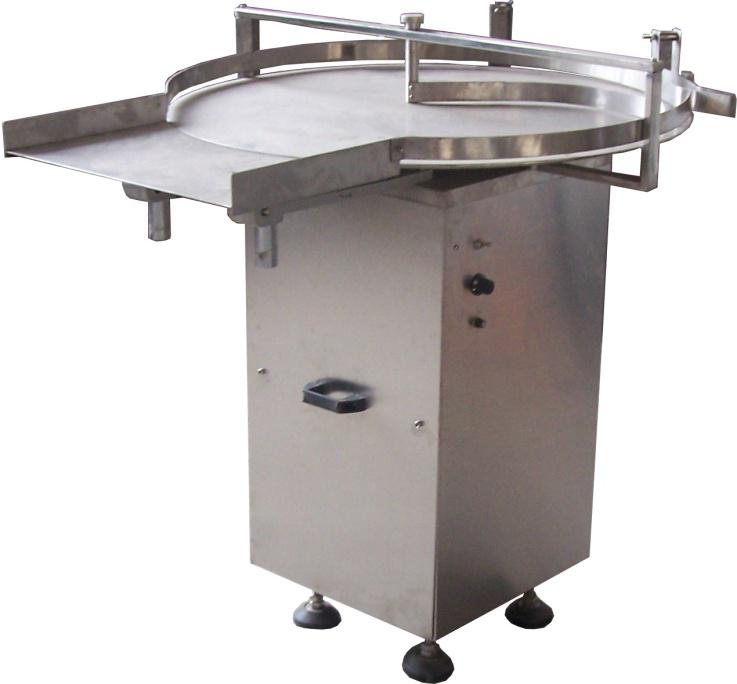

This machine consists of turn table, conveyor, twin track, cylinder positioning device, filling head, 2 rollers stoppering device and bottle outlet track. The filling auger is controlled by the servo motor precisely.
It use turntable and chain plate conveyor to transfer the bottles, cylinder to position the bottle,2 track filling and 2 roller stoppering device.
- Characteristic:
2 long chain plate conveyor, cylinder positioning, 2-head screw filling, 2-roller stoppering, so the machine length is shortened.
Different types of filling auger meet requirements of powders with different fluidity
Touch panel control can set the filling dosage without stopping the machine
Speed control by inverter
Falling bottle auto reject; no bottle, no filling; no stoppers, auto stops; insufficient stoppers alarm
Auto counting function
CE certified, standard electric installation, safety guarantee on operation
Auto stop filling when filling auger touches filling nozzle and alarms
Easy to change the change part. easy to operate and disassemble .Easy to clean the key part.
Optional acrylic glass hood, laminar flow, sealed air outlet device
The whole machine is designed according to GMP requirements
Technical parameters:
Suitable bottle range: 7-30ml tubular vial or molded vial
Power supply:380V 50Hz
Power consumption: 1kw
Compressed air pressure: 0.4-0.6Mpa qty:25-35L/min
Filling error:≤2%
Auto stoppering ratio:99.9%
Speed control by inverter
Single machine noise:≤70dB
Weight: 800kg
Dimension: 2270x1050x1500(mm)
Related Products
-
Bottle / Tubes Filling Production Line
This is one full automatic bottle counting and filling production line, it is widely used in tablet or capsules packed in plastic bottle or glass bottles. The whole production line is consist of unscramble, electric counting machine, desiccant/cotton/paper inserter, capping machine, induction sealer and labeling machines.
-
I.V Infusion Production Line

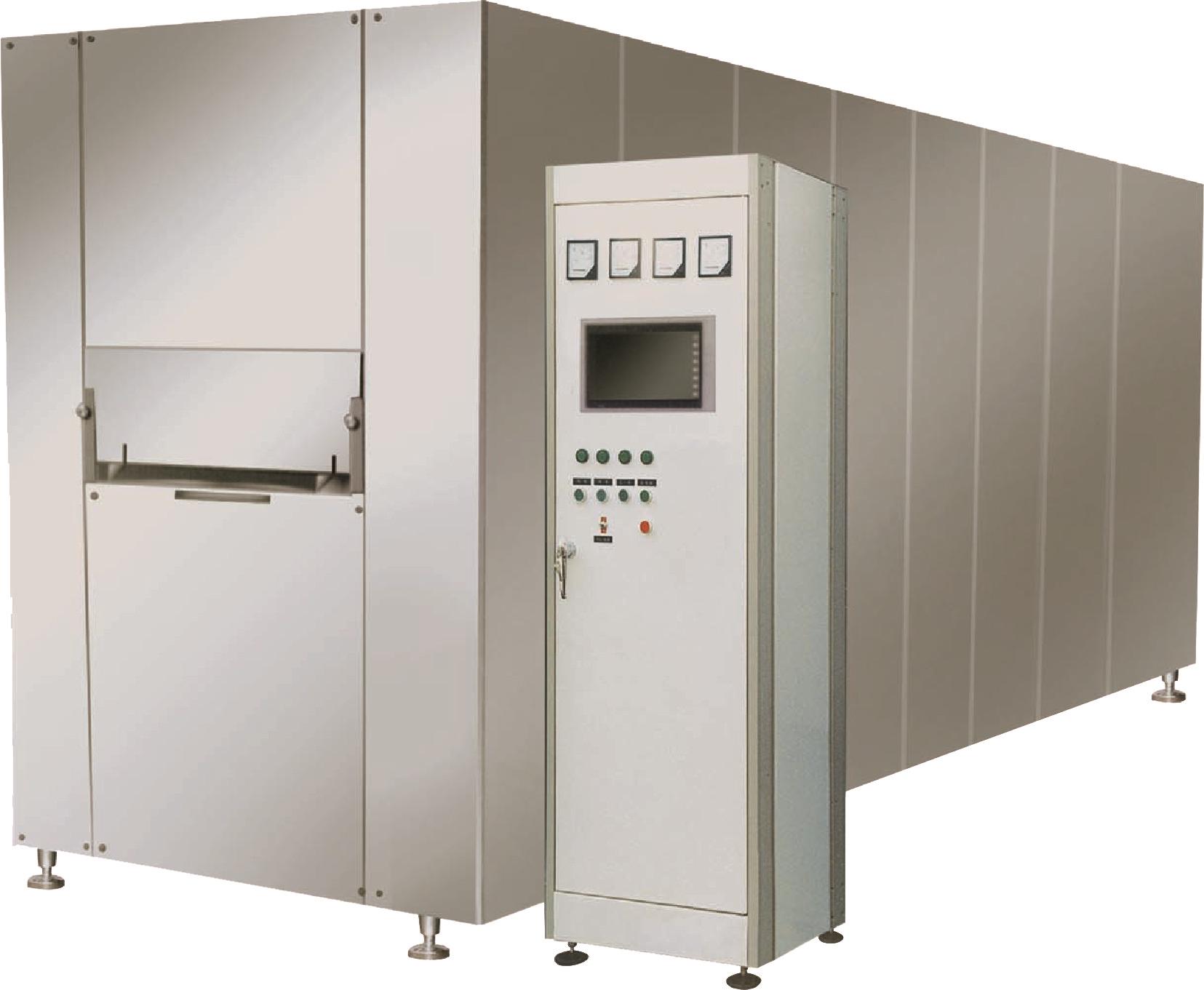

The glass bottle I.V infusion production line is consist of ultrasonic bottle washing machine, sterilizer tunnel dryer, filling and rubber stopper adding machine, crimping machine and labeling machine.
