ZP7/9/12/15 Rotary Tablet Press
ZP7/9/12 rotary tablet press is mainly applicable for trial production in labs and small-scale production and they are automatic equipment continuously pressing particles into round and special-shaped tables with diameters no more than 13mm.
This machine is a new generation product of our factory, and it is a continuous and automatic rotary tablet press for pressing various kinds of different shape tablets and also plain tablets. It is mainly used in pharmaceutical industry and the chemical, food, plastics, powder, metallurgy and electronic industries.
Characteristics:
Design of GMP;
High quality all stainless steel constructions;
Reliable safety sealing system and dust-proof system;
High visibility isolated door to prevent cross contamination;
Easily remove parts for quick machine’s maintenance;
Technical Parameters:
| Model | ZP7 | ZP9 | ZP12 | ZP15 |
| Dies | 7 sets | 9 sets | 12 sets | 15 sets |
| Max. pressure | 40KN | 40 KN | 40KN | 40KN |
| Max. Dia of tablet | 13mm | 13 mm | 13 mm | 13mm |
| Max. Depth of fill | 15mm | 15mm | 15mm | 15mm |
| Max. Thickness of Tablet | 6mm | 6 mm | 6 mm | 6 mm |
| Rotational diameter | 200mm | 200mm | 200mm | 200mm |
| Turret Speed | 32r/min | 32r/min | 32r/min | 32r/min |
| Diameter of Middle mould | 26mm | 26mm | 26mm | 26mm |
| Height of Middle mould | 22mm | 22mm | 22mm | 22mm |
| Diameter of Up & Down Punch Pole | 22mm | 22mm | 22mm | 19mm |
| Length of Up & Down Punch Pole | 11mm | 11mm | 11mm | 11mm |
| Production capacity | 9600-11440 pc/h | 9600-13440 pc/h | 9600-18440 pc/h | 9600-20000 pc/h |
| Motor | 0.75kw | 0.75kw | 0.75kw | 0.75kw |
| Overall size | 600 x 900 x 1150mm | 600 x 960 x 1150mm | 600 x 960 x 1150mm | 600x960x1150 |
| Net weight | 220kgs | 250kgs | 300kgs | 350kgs |
Related Products
-

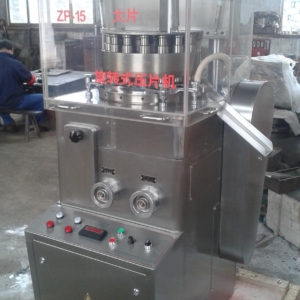

ZP15B Big Tablet Rotary Tablet Press
This machine’s mainly feature is suitable for big diameter tablet production; it can press the granules material into round shape tablet, circle shape tablet, irregular shape tablet and double side printing tablet with big diameter. There are fifteen pieces punch which are separately model dies, the tablet production speed, tablet thickness, material filling quantity and filling depth can be adjusted, it has function of auto stopping for overpressure condition to protect itself, and it has individual powder sucking box, which can suck the powder and reused the medicine powder, it fully meet the GMP request and very popular in the world market.
-
ZPW21A Series Rotary Tablet Press
This machine is applied to press all kinds of particle material into tablets and its greatest advantage is that it can press special-shaped tablets in all geometric shapes, double tablets, ring table’s and tablets with figures at both sides besides round tablets. Turret may be mounted with 21 pair of movable dies, so 21 tablets can be pressed at one turn. It is allowed to adjust the turret speed, stuffing depth of material and thickness of tablets during pressing and sample of tablets can be selected and examined. Pressure to pressing tablets is set by hydraulic system; to shish pressure gauge indication is attached. Overload protective device is mounted inside the hydraulic system and the system sill automatically stops when overloaded. Separate powder-absorbing box is supplied with the machine. It may absorb the powder from the operation of the machine to avoid bonding and clogging of powder and to recover raw material for refuse. This machine is a new type developed by ourselves during 1980’s and has been sold to international market.
-
CSP600 Single Punch Tablet Press
CSP600 Single Punch Tablet Press has absorbed foreign advanced technology to aid in its developing. It is a continuous, automatic tablet machine that is designed for departments such as pharmacy, chemical industry, electrical industry, food, laboratory which needs to make powder, and granular raw material into tablets.
-

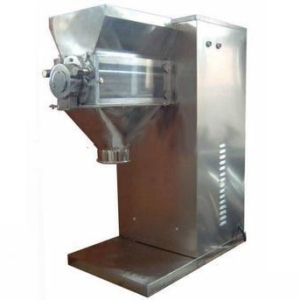

YK Series Granulating Machine
