ZP7/9/12/15 Rotary Tablet Press
ZP7/9/12 rotary tablet press is mainly applicable for trial production in labs and small-scale production and they are automatic equipment continuously pressing particles into round and special-shaped tables with diameters no more than 13mm.
This machine is a new generation product of our factory, and it is a continuous and automatic rotary tablet press for pressing various kinds of different shape tablets and also plain tablets. It is mainly used in pharmaceutical industry and the chemical, food, plastics, powder, metallurgy and electronic industries.
Characteristics:
Design of GMP;
High quality all stainless steel constructions;
Reliable safety sealing system and dust-proof system;
High visibility isolated door to prevent cross contamination;
Easily remove parts for quick machine’s maintenance;
Technical Parameters:
| Model | ZP7 | ZP9 | ZP12 | ZP15 |
| Dies | 7 sets | 9 sets | 12 sets | 15 sets |
| Max. pressure | 40KN | 40 KN | 40KN | 40KN |
| Max. Dia of tablet | 13mm | 13 mm | 13 mm | 13mm |
| Max. Depth of fill | 15mm | 15mm | 15mm | 15mm |
| Max. Thickness of Tablet | 6mm | 6 mm | 6 mm | 6 mm |
| Rotational diameter | 200mm | 200mm | 200mm | 200mm |
| Turret Speed | 32r/min | 32r/min | 32r/min | 32r/min |
| Diameter of Middle mould | 26mm | 26mm | 26mm | 26mm |
| Height of Middle mould | 22mm | 22mm | 22mm | 22mm |
| Diameter of Up & Down Punch Pole | 22mm | 22mm | 22mm | 19mm |
| Length of Up & Down Punch Pole | 11mm | 11mm | 11mm | 11mm |
| Production capacity | 9600-11440 pc/h | 9600-13440 pc/h | 9600-18440 pc/h | 9600-20000 pc/h |
| Motor | 0.75kw | 0.75kw | 0.75kw | 0.75kw |
| Overall size | 600 x 900 x 1150mm | 600 x 960 x 1150mm | 600 x 960 x 1150mm | 600x960x1150 |
| Net weight | 220kgs | 250kgs | 300kgs | 350kgs |
Related Products
-
VH Series Mixer
This machine has the following distinguishing features, no blind eagle in the cylinders, and no accumulation of materials, high speed, and short mixing time. With the body made of stainless steel and both inner and outer walls polished, the cylinders have elegant appearance. The charging of materials can be made either by manual operation or through vacuum suction. For discharging, rotating valves and rapid swivel heads are adopted. This mixer is applicable for mixing powdery or granular materials in pharmaceutical and other industries. It consists of two V-type cylinders of different altitudes, and through mechanical transmission the materials in these cylinders are made to move back and forth and turn over again and again, thereby achieving the goal of uniform mixing.
-

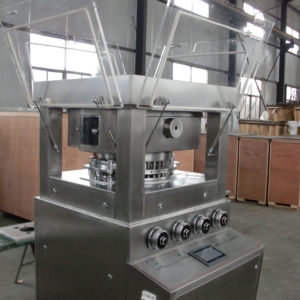

ZP35 Series Rotary Tablet Press Machine
