ZP7/9/12/15 Rotary Tablet Press
ZP7/9/12 rotary tablet press is mainly applicable for trial production in labs and small-scale production and they are automatic equipment continuously pressing particles into round and special-shaped tables with diameters no more than 13mm.
This machine is a new generation product of our factory, and it is a continuous and automatic rotary tablet press for pressing various kinds of different shape tablets and also plain tablets. It is mainly used in pharmaceutical industry and the chemical, food, plastics, powder, metallurgy and electronic industries.
Characteristics:
Design of GMP;
High quality all stainless steel constructions;
Reliable safety sealing system and dust-proof system;
High visibility isolated door to prevent cross contamination;
Easily remove parts for quick machine’s maintenance;
Technical Parameters:
| Model | ZP7 | ZP9 | ZP12 | ZP15 |
| Dies | 7 sets | 9 sets | 12 sets | 15 sets |
| Max. pressure | 40KN | 40 KN | 40KN | 40KN |
| Max. Dia of tablet | 13mm | 13 mm | 13 mm | 13mm |
| Max. Depth of fill | 15mm | 15mm | 15mm | 15mm |
| Max. Thickness of Tablet | 6mm | 6 mm | 6 mm | 6 mm |
| Rotational diameter | 200mm | 200mm | 200mm | 200mm |
| Turret Speed | 32r/min | 32r/min | 32r/min | 32r/min |
| Diameter of Middle mould | 26mm | 26mm | 26mm | 26mm |
| Height of Middle mould | 22mm | 22mm | 22mm | 22mm |
| Diameter of Up & Down Punch Pole | 22mm | 22mm | 22mm | 19mm |
| Length of Up & Down Punch Pole | 11mm | 11mm | 11mm | 11mm |
| Production capacity | 9600-11440 pc/h | 9600-13440 pc/h | 9600-18440 pc/h | 9600-20000 pc/h |
| Motor | 0.75kw | 0.75kw | 0.75kw | 0.75kw |
| Overall size | 600 x 900 x 1150mm | 600 x 960 x 1150mm | 600 x 960 x 1150mm | 600x960x1150 |
| Net weight | 220kgs | 250kgs | 300kgs | 350kgs |
Related Products
-
Soft Tube Filling and Sealing Machine
This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. It’s ideal equipment for plumbum tube, ALU tube, plastic tube and laminated tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.
-
ZP1100 Series Rotary Tablet Press
ZP1100 series rotary tablet press is a new generation product. Widely applicable to industries such as pharmaceutical, foodstuff and chemicals for pressing the granular materials into round, irregular or double side engraved tablets.
-

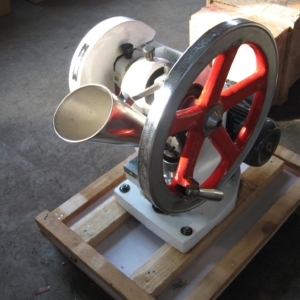

TDP-1.5/5/6 Single Punch Tablet Press
This machine is designed for pressing round tablets from various granular materials, applicable to be used for research and development and to small scale production. As its feature, it is an all desk-top continuous press driven by motor or man power. Only one set of punch and die is mounted. The depth of the filling material and the thickness of the tablets can be adjusted.
-

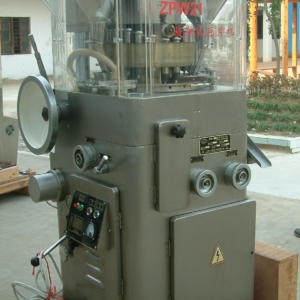

ZPW21A Series Rotary Tablet Press
